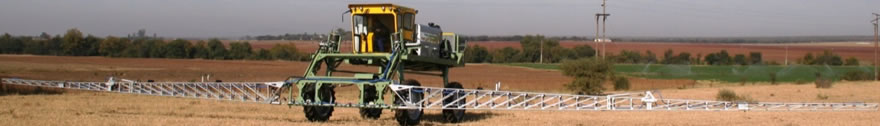

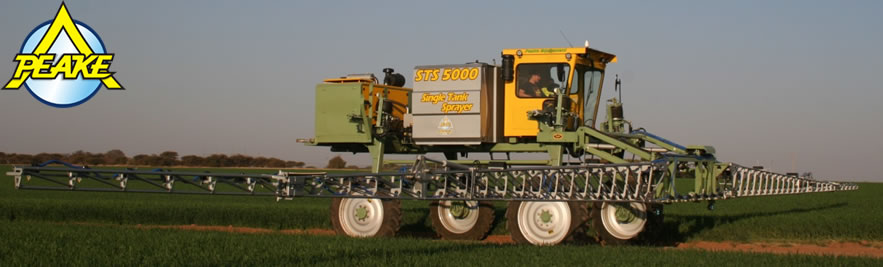

Peake STS 5000 Specifications:

Engine and Drive: Turbo charged Cummins QSB engine, 205kw. Infinitely variable speed hydrostatic drive controlled through multi-function joystick. Constant 4 wheel drive. High range for road transport. Heavy-duty wheel motors and duel hydrostatic pumps.


Chassis, Steering & Suspension: All welded high quality rectangular steel sections. Power assisted front wheel steering with telescopic front arms fitted with front wheel independent air ride suspension, live air supply and auto-load sensing adjustment providing 210mm of independent wheel travel. This ensures improved operator comfort and that all wheels are making ground contact irrespective of ground conditions. Under frame ground clearance of 2.2m with 38' wheels.

Cab: Fully Air-conditioned with RESPA-CF fresh air filters and air suspension seats provide daylong driver comfort. The uncluttered control layout allows for excellent view of the “InFront” Boom. Bright LED lights are positioned to give you a superior view of the boom and field during night-time spraying.

Spray tanks: Single 304 Stainless steel tank of 5000lt mounted behind the cab. Venturi agitator in tank. Easy fill connectors at ground level from the side.

Spray pumps: Hydraulically driven pump, mounted next to tank of adequate capacity for high volume spraying.

Spray Boom: Peake "InFront" boom is of all steel construction for South African conditions. Configurations are available in widths, up to 36 m, to match your spray pattern or planter width. Hydraulically operated folding and lifting system with fingertip control from the drivers seat. Boom height variable between 800 and 2800mm. Fingertip control on multifunction joystick.

Spray fluid control system: TeeJet metering and computerised fluid application rate regulating system.

Tyres: 340/85 R38 Radial ply tyres ensure adequate carrying capacity and minimum compaction.

Track width: Mechanically adjustable from 3000 to 3700mm, wider width optionally available.




Specifications:
Cab Complete cab with air con and filtered fresh air with RESPA-CF filter and separate fan - Woodspec, built for driver and one passenger.
Seat High black vinyl covered adjustable air suspension seat for operator and mechanical suspension for passenger.
Rear View Mirrors One each side of the cab.
Instrumentation Digital rev counter and hour meter, Engine temperature & fuel level gauges.
Warning Lights Hand brake, alternator charge, water temp & oil pressure light.
Steering Column Adjustable tilt.
Lighting LED lights, 2 work lights front, 2 side & 1 rear. 12 volt system.
Additional Lights 4 LED Lights, kit including, relays, wiring and switches.
Boom Lights LED lights shining down the length of the spray boom, a must for night spraying.
Engine Transvers mounted Cummins 6.7 liter QSB turbo charged diesel. 205kw. Suction cooling fan for radiator.
Air Filtration Engine fitted with high volume air filter which includes a inner safety element.
Fuel Filter Fitted with a standard Cummins fuel filter, an additional cartridge filters and one "in -line" auxiliary filter.
Drive System Dual pressure compensated hydrostatic pumps with manual displacement control driving four fixed displacement wheel motors. Constant 4 Wheel Drive. Rear wheel brakes fitted. High capacity 8 stud Black Bruin wheel hubs.
Travel Speed Operation mode constant 4 W Drive. 0 - 21km/h in low & 0 - 38km/h in high.
Hydraulic Oil Cooler High volume air cooled oil cooler part of main cooling pack.
Oil Filtration Hydrostatic drive fitted with suction and charge oil filter. All return oil is filtered through 10 micron filter in return line.
Front & Rear Suspension Telescopic front arms with independent air cushion suspension, 320 dia fitted with independent leveling valves.
Steering Front wheel only, hydraulic activated via 100mm dia, cylinders. Heavy duty rod ends and tie rods.
Suspension Air Supply Air cushions charged from engine driven compressor. Reservoir and are fitted with independent leveling valves.
Fuel Capacity 315 Liter steel tank fitted with filler cap.
Ground Clearance 2100 mm under cross beams.
Track Widths 3000 to 3700
Turning Circle 10 meter radius at 3.5m track.
Wheel Base 3860 mm.
Mass 8.9 ton dry weight with 30m InFront boom. (Approx)
Tyres 38" wheels and 340-85R38 Radial tubeless tyres.
Access Side sliding ladder, with service platforms on side and rear.


Spray Section:
Solution Tanks 304 Stainless steel tank - 5000 liter capacity. (316 optional)
Filling Side filling, High volume 76mm filter fitted in filling line with cam lock couplings.
Product Pump Hydraulically-driven Bartolini pump, 165l/min
Boom Up to a 36 meter hydraulically operated folding tubular section steel dry booms.
Breakaway Hydraulic breakaway, and additional mechanical tip breakaway.
Boom Height Range 800mm - 2800mm
Boom Sprayer Spacing 500mm - adjustable
Boom Plumbing 5 sections with 13mm pressure line, 13mm feeder line.
Filters - Spray Fluid 1 - 40mm filters at pump & 5 - 20 mm pressure filters in spray lines.
Spray Control TeeJet rate controller with auto flow and pressure controllers. 5 boom section controls, electronic flow measurement, filter and auto pressure relief valve.
Spray Monitor TeeJet 884E electronic computerized spray controller providing constant flow proportional to ground speed and data related to spray area and volumes.
Nozzles TeeJet non drip nozzles Triplex nozzle holders and fittings. Nozzle tips and caps not included.


Guidance:
GPS, Guidance, Light Bar TeeJet Matrix Pro 840GS (8.4" touch screen)
Automatic Boom Section Control TeeJet BoomPilot (Installed in conjunction with the TeeJet Matrix Pro 840GS)
Hydraulic Auto-Steer System TeeJet FieldPilot (Installed in conjunction with the TeeJet Matrix Pro 840GS)
