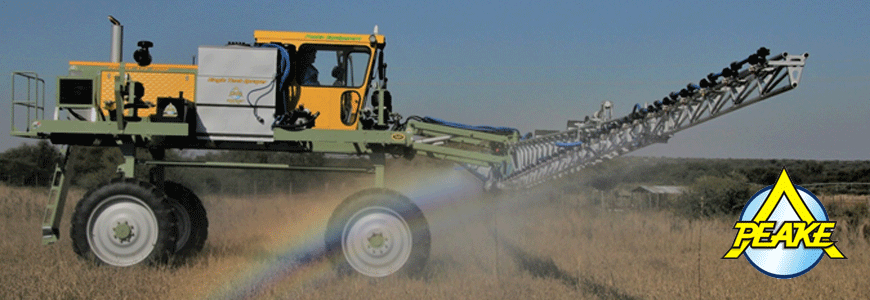

Peake STS-XT Sprayer Specifications:

Engine and drive: Turbo charged Cummins BTA6 engine, 149kw @ 2200 rpm. Infinitely variable speed hydrostatic drive controlled through multi-function joystick. Constant 4 wheel drive. High range 2-wheel drive for road transport. Heavy-duty wheel motors.


Chassis, Steering & Suspension: All welded high quality rectangular steel sections. Power assisted front wheel steering with telescopic arms fitted with independent air ride suspension, live air supply and auto-load sensing adjustment providing 210mm of independent wheel travel. This ensures improved operator comfort and that all wheels are making ground contact irrespective of ground conditions. Under frame ground clearance 2m with 38' wheels.
Cab: Fully Air-conditioned with RESPA-CFX and mechanical suspension seat provide's daylong driver comfort. The uncluttered control layout allows for excellent view of the “InFront” Boom. Bright LED lights are positioned to give you a superior view of the boom and field during night-time spraying.

Spray tanks: Single 304 Stainless steel tank of 1500 lt to 3000 lt mounted behind cab. Venturi agitator in tank. Easy fill connectors at ground level from the front, with high volume inline filter.
Spray pumps: Hydraulically driven pump, mounted next to tank of adequate capacity for high volume spraying.

Spray Boom: Peake “InFront" boom is of all steel construction for South African conditions. Configurations are available in widths, up to 26 m, to match your spray pattern or planter width. Hydraulically operated folding and lifting system with fingertip control from the drivers seat. Boom height variable between 800 and 2800mm. Fingertip control on multifunction joystick.

Spray fluid control system: TeeJet metering and computerised fluid application rate regulating system.
Tyres: 340/85 R38 Radial ply tyres ensure adequate carrying capacity and minimum compaction.
Track width: Mechanically adjustable from 2200 to 3700mm, wider width optionally available.
Specifications:
Cab Woodspec Built for single operator.
Glass Type Tempered-flat front, sides & rear SABS approved safety glass.
Seat  High back vinyl covered adjustable Mechanical Suspension seat.
Wipers Single speed wipers.
Rear view mirrors One on each side of the cab.
Gauges Tachometer for engine speed, engine temperature, oil pressure and hour meter & fuel level gauges.
Warning lights Alternator charge, water temp & oil pressure light.
Steering Column Adjustable tilt.
In Cab Air Con Air conditioner with multi-range adjustable fan with 3 adjustable air vents.
In Cab Air Filtration. RESPA CFX filter.
Lighting 4 Field view LED work lights front, 2 side & 1 rear, 5 in total.
Engine Turbo charged Cummins BTA6 diesel engine, 149kw @ 2200 rpm. Suction cooling fan for radiator.
Engine Air Filtration. Engine fitted with Donaldson high volume air filter.
Fuel Filter Fitted with Cummins standard fuel filter and "in-line " auxiliary  filter.
Drive System Pressure compensated hydrostatic pump with manual displacement control driving four fixed displacement Black Bruin wheel motors. Constant 4 Wheel Drive.
Travel Speed 4 W Drive. Operation mode.  0 - 20 km/h.
Hydraulic oil cooler High volume external air cooled oil cooler fitted with 12 volt DC fan.
Suspension front Telescopic arms with independent air cushion suspension.
Steering Front wheel, hydraulic activated via 90mm diameter cylinders. Heavy duty rod ends.
Suspension Air supply Engine driven compressor, reservoir and levelling valves.
Fuel Capacity 220 Liter steel tank fitted with screen and lockable filler cap.
Ground Clearance 2000 mm under cross beams.
Track Widths 2400 mm - 3700 mm manual adjust.
Turning circle 8.3 meter radius at 3.3 meter track and 6.3 meter radius with optional, All Wheel Steering.
Wheel Base 2830 mm.
Dimensions L- 8200mm,  W - 4160mm,  H - 3735mm (fitted with 19m spray boom)
Dry Weight 5900kg (fitted with 19m spray boom)
Max. Axle Loading 6000kg - Front and 6800kg - Rear.
Tyres 38" wheels and 340/85 R38 tyres  / 13.6 - 38 Radial.
Access Folding rear ladder with service platforms & hand rails.


Spray Section:
Solution Tanks 304 Stainless steel  tanks,1500 - 3000 liter capacity. Not suited for liquid fertilizer or similar chemicals.
Agitation Spray mixture via venture.
Product Pump Hydraulically-driven Bertolini diaphragm pump 120l/min.
Boom 19 - 26 meter hydraulically operated folding tubular section steel dry booms.
Breakaway Hydraulic breakaway, additional spring tip breakaway .
Boom Height Range 800mm - 2800mm
Nozzle Spacing 500mm
Boom Plumbing 19 - 26m - 3 sections with 13mm pressure line, 13mm feeder.
Filters - Spray Fluid 1 - 40mm suction filters & 3 - 20 mm pressure filters in spray line.
Spray Control TeeJet spray controller with auto flow and pressure controllers. 3 boom section controls, flow measurement, filter and auto pressure relief valve.
Spray Monitor TeeJet 884E electronic computerized spray controller providing constant flow proportional to ground speed and data related to spray area and volumes.
Nozzles TeeJet Triple nozzle body, includes ChemSaver® diaphragm check valve for drip-free shutoff. Opens at 0.7 bar. Nozzles Tips & Caps Not Included. Nozzle sizes/type to customer preference.


Optional Extras:
Additional Lights  Kit including 4 work lights, relays, wiring and switches.
Windshield Washer Windshield washer bottle, hose and nozzle.
All Wheel Steering Additional steering wheels on the rear. (Must also have rear suspension fitted)
Auto Steering Using the legendary TeeJet FieldPilot system.
GPS, Light Bar Using TeeJet technology.
Swath Control Using the legendary TeeJet BoomPilot system.
Spray Booms 19, 22 ,24 & 26 meter booms optionally available.

Nozzle behind rear wheels
Front and rear wheel shields/fenders (straw dividers)
High volume plumbing and pump up to 300l/min.
Optional wheel sizes available
Optional spray pumps available
