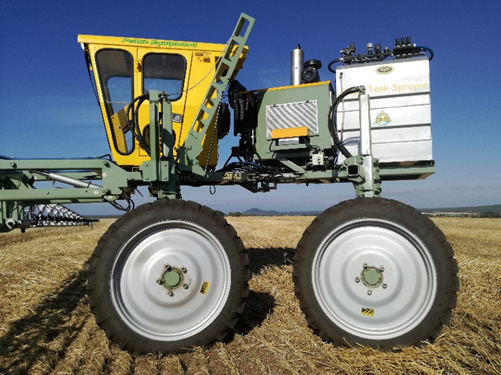

Peake Juru, 19m Boom Specifications:

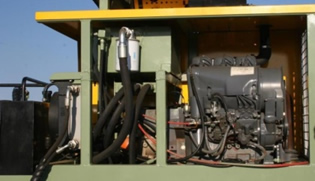

Engine and Drive: Natural aspirated KHM air-cooled engine, 48kw @ 2200 rpm. Infinitely variable speed hydrostatic drive controlled through a joystick. Constant 4 wheel drive. Heavy-duty wheel motors. Optional cummins engine.





Chassis: All welded high quality rectangular/square steel sections. Under frame ground clearance manually adjustable from 1.3 meter to 2.2 meter with 36" wheels.

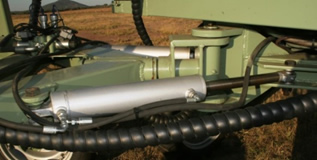

Steering: Articulated unit with two 60mm hydraulic cylinders taking the effort out of turning and offering a small turning circle. The rear wheels follow the front wheels track.
Suspension: Articulated unit with manually adjustable wheel arm. Narrow wheel to wheel arm profile insuring less damage to crops.
Cab: Fully Air-conditioned with activated charcoal fresh air filters and fan. High back vinyl covered adjustable mechanical seat.The uncluttered control layout allows for excellent view of the “InFront” boom. Bright LED lights are positioned to give you a superior view of the boom and field during night-time spraying.

Spray Tank: Single 304 Stainless steel tank of 1000 lt mounted at the rear. Venturi agitator in tank. Easy fill connectors at ground level from the front, with high volume inline filter.

Spray pumps: Hydraulically driven pump, mounted next to tank of adequate capacity for high volume spraying.

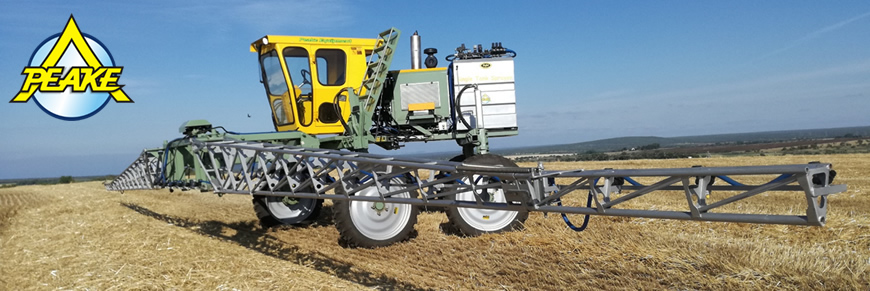

Spray Boom: Peake “InFront" boom is of all steel construction for South African conditions. Configurations are available in widths, up to 19m, to match your spray pattern or planter width. Hydraulically operated folding and lifting system with fingertip control from the drivers seat. Boom height variable between 800 and 2800mm.

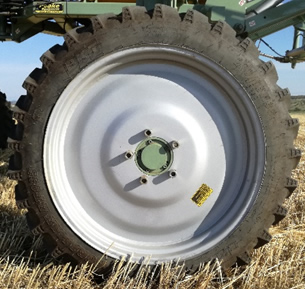

Tyres: 230/85 R36 8ply, cross ply tyres ensure adequate carrying capacity and minimum compaction.

Track width: Mechanically adjustable from 2500 to 3550mm


Specifications:
Cab Woodspec Built for single operator. Fully Air-conditioned with Activated charcoal, fresh air filters.
Glass Type Tempered-flat front, sides & rear SABS approved safety glass.
Seat  High black automotive type vinyl covered 4-way adjustable manual suspension seat.
Wipers Single speed wipers.
Rear view mirrors One on each side of the cab.
Gauges Analogue hour meter.
Warning lights Hand brake, charge & oil pressure warning lights.
Steering Column Adjustable tilt.
Lighting 2 Field view LED work lights.
Engine KHM "Deutz" 4 cylinder air-cooled. Optional Cummins.
Drive System Pressure compensated hydrostatic pump with manual positive displacement control driving heavy duty fixed displacement Black Bruin BBC 01 wheel motors. 5 Stud wheel mounting. Constant 4 Wheel Drive.
Frame Welded construction high strength rectangular & square steel section cross-member frame.
Travel Speed 4 Wheel Drive. Infinitely adjustable from 0 to a maximum of 14km/h.
Suspension Articulated unit. Ground clearance manually adjustable from 1.3 meter to 1.8 meter.
Steering Hydraulic all wheel steering, articulated unit.
Fuel Capacity 160L steel tanks fitted with screens and filler caps.
Ground Clearance 1300 to 1800 mm under cross beam.
Track Width 2500 mm - 3550 mm, manual adjust.
Turning circle 3.55 meter radius at 3m track.
Wheel Base 2730 mm.
Dry Weight 2500 Kg - without attachments. (approx.)
Tyres 230/85 R36 8ply rating tractor type tread tyres.
Park Brake Spring loaded wet multi-disc park brake, pressure to release. (Fail safe)
Access Folding side ladder with service platforms.
Accessory Hydraulics 1 bank hydraulic solenoid valves fitted at rear end for operating spray pump. Hydraulic motor for driving spray pump.

Spray Section:
Solution Tanks 304 Stainless steel tanks, 1000 liter capacity. Not suited for liquid fertilizer or similar chemicals.
Agitation Spray mixture via venture.
Product Pump Hydraulically-driven Bertolini diaphragm pump 120l/min.
Boom 19 Meter and smaller hydraulically operated folding tubular section steel dry booms.
Breakaway Hydraulic breakaway, additional spring tip breakaway .
Boom Height Range 800mm - 2800mm
Nozzle Spacing 500mm
Boom Plumbing 19 Meter 3 sections with 13mm pressure line, 13mm feeder.
Filters - Spray Fluid 1 - 40mm suction filters & 3 - 20 mm pressure filters in spray line.
Spray Control TeeJet spray controller with auto flow and pressure controllers. 3 boom section controls, flow measurement, filter and auto pressure relief valve.
Spray Monitor TeeJet 884E electronic computerized spray controller providing constant flow proportional to ground speed and data related to spray area and volumes.
Nozzles TeeJet Triple nozzle body, includes ChemSaver® diaphragm check valve for drip-free shutoff. Opens at 0.7 bar. Nozzles Tips & Caps Not Included Nozzle sizes & type to customer preference.

Optional Attachments:
Rear lift arms with quick hitch points and various toolbar options. All controlled from a joy stick.
Personal carrier.
