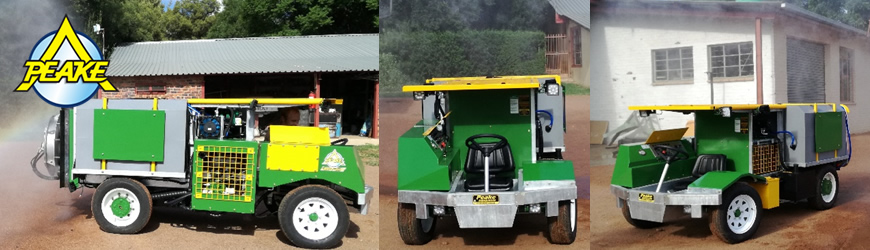

Peake Buggy Specifications:

Engine and Drive: 3-Cylinder 18 KW Yanmar engine. The hydrostatic continuous variable speed drive is suitable for steep slopes.





Chassis: The chassis is manufactured from high quality steel section for improved robustness and is hot-dip galvanized.

Steering: Hydraulic power steering with a single cylinder.
Suspension: Front heavy duty parabolic leaf spring.
Cab: Open cab fitted with high quality black vinyl cushioned seat.

Spray Tank: 1,000 Litre polyethylene tank is fitted with a suction filter, Venturi agitator and Bertolini diaphragm chemical pump.

Spray Fan and Control System: 600mm diameter hydraulic-driven stainless steel mist blower fan.

Tyres: 195/65 R14 6 ply tyres to ensure adequate carrying capacity.

Dimensions: Height of 1.5 m, width of 1.5 m and overall length of 3.5 m


Specifications:
Cab Open station with a roof over operator.
Seat  High quality black vinyl cushioned seat.
Rear view mirror One, right front.
Lighting Six LED lights fitted. Three to the front, two to the sides and one to the back.
Gauges Hour meter & engine temperature.
Warning lights Six LED warning lights.
Engine Yanmar, 3 cylinder water cooled diesel engine, 18kw.
Drive System Pressure compensated hydrostatic pump with manual displacement control. Driving two fixed displacement heavy duty wheel motors and hubs.
Hydraulic oil cooler High volume external air cooled oil cooler fitted with 12 volt DC fan.
Steering Column Fixed height and angle steering column.
Steering System Front wheel, hydraulic activated via 50mm diameter cylinders, with heavy duty rod ends.
Frame Hot dipped galvanized welded steel chassis.
Ground Clearance 150mm with 195/65R14 wheels
Travel Speed 8 km /hour.
Fuel Capacity 20 Litres.
Dimensions Height of 1.5 m, width of 1.5 m and overall length of 3.5 m
Dry Weight 1.3 Tons.
Tyres 195/65 R14 6 ply tyres to ensure adequate carrying capacity.
Park Brake Fail safe park brake operated from driver seat.

Fan Section:

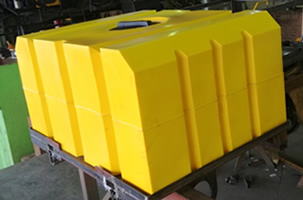

Tank 1,000 Litre Polyethylene tank.
Agitation Venturi agitator.
Nozzle's Brass rollover nozzle bodies.
Nozzles Tips Ceramic hollow cone nozzles.
Spray Pluming Bertolini diaphragm chemical pump.
Filters 1 ¼ " Suction Filter.
Spray Control 3 Way control valve, manually operated.
Fan 600mm diameter hydraulic-driven stainless steel mist blower fan.
