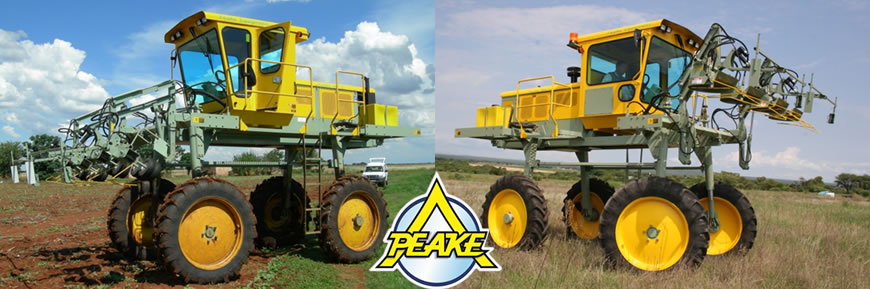

Peake Detasseler Specifications

Engine and Drive: Turbo charged Cummins 4BT- 309 L engine, 86kw @ 2200 rpm. Infinitely variable speed hydrostatic drive controlled through multi-function joystick. Constant 4 wheel drive. High range 2-wheel drive for road transport. Heavy-duty wheel motors, 5 stud.

Chassis, Steering & Suspension: All welded high quality rectangular steel sections. Power assisted front wheel steering with telescopic front arms fitted with front wheel independent air ride suspension, live air supply and auto-load sensing adjustment providing 210mm of independent wheel travel. This ensures improved operator comfort and that all wheels are making ground contact irrespective of ground conditions. Under frame ground clearance 2m.

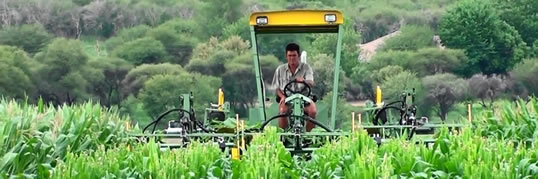

Cab: Woodspec built operator only, open station. Vinyle covered adjustable mechanical seat. the uncluttered control layout allows for excellent view of the "InFront" cutters & pullers. Bright LED lights are positioned to give you a superior view of the heads and field during night-time work.

Cutters: Robust frame and housing with dual bearing hydraulic drive motor to provide greater blade stability and motor life.

Pullers: Dual tried pullers ensure each and every plume is removed. High torque roller stator hydraulic motors deliver all the power needed to pull the most stubborn flower.

Height sensing: Dual Photo Electric Optic sensor read the plant height and leaf density to determine the optimal cutting and pulling position for the heads. The height is then regulated via the live hydraulically controlled system. Head height variable 1 to 2.1 meters.

Control: All functions are fingertip controlled from the multifunction transmission joystick and include auto and manual selection for getting through those awkward pivot tracks.

Row Spacing & Number: Adjustable to suit your specification. Available in up to 12 row configuration.

Tyres: 270/95 R38 Radial ply tyres ensure adequate carrying capacity and minimum compaction.



Specifications:
Cab Woodspec Built for single operator open station, roof over. Closed cab optional.
Seat High black vinyl covered adjustable mechanical seat.
Gauges Tachometer for engine speed, engine temperature, oil pressure and hour meter & fuel level gauges.
Warning lights Alternator charge, water temp & oil pressure light.
Steering Column Adjustable tilt.
Lighting 2 Field view LED work lights front & 1 rear, 3 in total.
Engine Turbo charged Cummins 4BT -309l diesel engine, 86kw @ 2200 rpm. Suction cooling fan for radiator.
Engine Air Filtration Engine fitted with Donaldson high volume air filter.
Fuel Filter Fitted with Cummins standard fuel filter and "in-line " auxiliary filter.
Drive System Pressure compensated hydrostatic pump with manual displacement control driving four fixed displacement Black Bruin wheel motors. Manual selection of 2 or 4 wheel drive.
Travel Speed 4 W Drive. Operation mode 0 - 10 km/h. 2 W driver operation mode 0 - 20km/h.
Hydraulic Oil Cooler High volume external air cooled oil cooler fitted with 12 volt DC fan.
Suspension Front Telescopic front arms with independent air cushion suspension.
Suspension Rear Fixed arms, no suspension.
Steering Front wheel, hydraulic activated via 80mm diameter cylinders. Heavy duty rod ends.
Suspension Air supply External.
Fuel Capacity 180L steel tank fitted with screen and lockable filler cap.
Ground Clearance 2000 mm under cross beams.
Track Width 2200 mm - 3200 mm manual adjust.
Turning circle 6.9 meter radius at 3 meter track.
Wheel Base 3000 mm.
Tyres 38" wheels and 270/95 R38
Access Folding rear ladder with service platforms & hand rails on either side.


Detasseling Section:
Cutters Robust frame and housing with dual bearings hydraulically driven motor to provide greater blade stability and motor life. 500mm cutting diameter.
Pullers Dual 4.10/3.50-4 Tyre Pullers. High torque White roller stator hydraulic motors.
Head Height Control Hydraulically operated lift assemblies with fingertip control, from the multifunctional transmission joy stick. Incorporating Photo electric plant height sensing.
Height Sensing Dual Photo electric Optic sensors read the plant height and leaf density to determine the optimal cutting and pulling position for heads. The height is then regulated via the live hydraulic system controlled system. Head height variable 1 to 2.1 meters.


Optional Extras:
Additional Lights Kit including 4 work lights, relays, wiring and switches.
Brakes Hydraulically activated parking brakes on rear wheels.
All Wheel Steering Additional steering wheels on the rear. (Must also have rear suspension fitted)
Traction Control Fully Functional 4 Wheel Positive traction control unit. Incorporating flick of the switch control for 2x4 or 4x4 modes.
Rear view mirrors One on each side of the cab.
Rear Suspension Telescopic rear arms with independent air cushion suspension and air levelling valves.
Cab Fully Air-conditioned with activated charcoal fresh air filters and air suspension seat provides daylong driver comfort. The uncluttered control layout allows for excellent view of the “InFront” Boom.
